GM CLIMBING Micro Belay Device Tubular V-grooved or Belay Package EN 15151-2 UIAA Certified

Price: $49.90 - $27.95
(as of Apr 01,2022 08:09:04 UTC – Details)

Product Description

Specification

Material: Aluminum Alloy (anodized), Hot forged
Standard Finish: Anodized
Single Slot: 34 x 15mm / 1.34 x 0.61in
Height: 90mm / 3.74in
Rope compatibility (Dia): 8~11mm, single rope, half rope, double ropes
Net weight: 63.5g / 2.24Oz

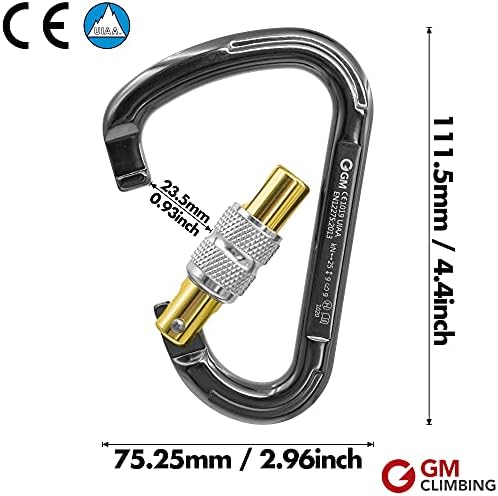

Material: Aluminium alloy (anodized), Hot forged
Strength: Breaking Strength 25kN – Minor Axis: 9kN – Open Gate: 9kN
Gate Opening(d): 23mm
Net Weight: 90g / 3.17Oz
Length: 110mm – Width:75mm
Certification: CE1019 EN12275 / UIAA 121

Note: A Locking Carabiner is required to use with belay device.

How does the belay device work？

Belay device works as a friction brake, designed to be used by belayer to assure climber’s safety with minimum force.

Three steps to describe:
Bent Rope →
Super great friction(force) →
Stop the move of rope(locking off rope)

Bent rope release super large force (friction). Threading through belay device, rope bents twice to generate great friction which allows belayer to catch the fall of a much heavier climber with minimum force.

Features

Ultra-light, Compact
Takes up little space in the rack and easy for climbers to carry
V-grooved slots
Allow rope to smoothly run through the belay when climber is during climbing.
Rope-friendly
Every corner or edge of belay device is round and smooth, well protecting your ropes.
Teethed Channel
Enable belay to work with skinnier rope(8~11mm);
Generates larger friction to help belayer easily control the move of ropes

Double Slots

able to offer effective braking to half, twin and single ropes
effectively prevent rope from twisting
Use with HMS locking carabiner
Locking gate to assure safe opeartion
HMS shape, with narrow side connecting to harness loop, to pratically keep the system in correct loading direction

GM CLIMBING Belay Package. V-grooved Tubular Belay Device: light and compact, smooth rope control, EN 15151-2 and UIAA certified; HMS screw locking carabiner: 25kN breaking strength, large gate opening, both CE UIAA certified
LIGHTEN YOUR RACK! 2.24Oz, an ultra-light, compact and easy-to-use V-grooved belay device with teethed channel, IDEAL CHOICE for you climbers to lighten rack.
BETTER ROPE CONTROL! Whether you use belay device in belaying climbers or rappelling, TEETHED CHANNEL creates more friction in braking and allow device to work with skinnier rope. With minimum force, you can easily arrest the fall of climber promptly.
Double Slots construction, belay device offers effective braking to half, twin and single ropes, 8~11mm.
HMS screw locking carabiner, always a nice match to belay device, which assures safety with locking gate, and helps properly position the system with narrow angle side attached to harness loop.
